Health Check Configuration

The Health Check system allows you to monitor the availability and health of your service by configuring automatic checks. Here is a guide to configure the different fields:

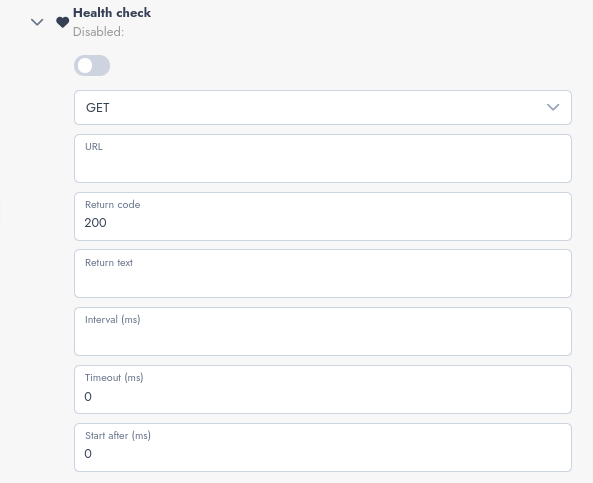

Configuration Fields

1. Enable/Disable

• "Disabled" button: Enables or disables the Health Check system. When disabled, no health checks will be performed.

2. HTTP Method

• Field: Select the HTTP method to use (e.g., GET, POST, PUT, DELETE). Default: GET.

3. URL

• Field: Specify the URL to check. Example: http://localhost:8080/health.

4. Expected Response Code

• Field: Set the expected HTTP code to consider the check successful. Default: 200.

5. Expected Response Text

• Field (optional): Specify the expected text in the response for the service to be considered healthy. Leave empty to skip this check.

6. Interval (ms)

• Field: Set the time interval (in milliseconds) between successive checks. Example: 5000 (5 seconds).

7. Timeout (ms)

• Field: Specify the maximum time (in milliseconds) to receive a response before a check fails. Example: 2000 (2 seconds). Default: 0 (no timeout).

8. Startup Delay (ms)

• Field: Specify the time to wait (in milliseconds) after the service starts before starting the checks. Example: 1000 (1 second). Default: 0 (immediate start).

Configuration Example

For an application listening on http://localhost:8080/health, you can configure:

• HTTP Method: GET
• URL: http://localhost:8080/health
• Expected Response Code: 200
• Interval: 5000
• Timeout: 2000
• Startup Delay: 1000

Notes

• Ensure that the provided URL is accessible from the system performing the checks.
• Make sure the interval and timeout are suitable for your application to avoid unexpected failures.
